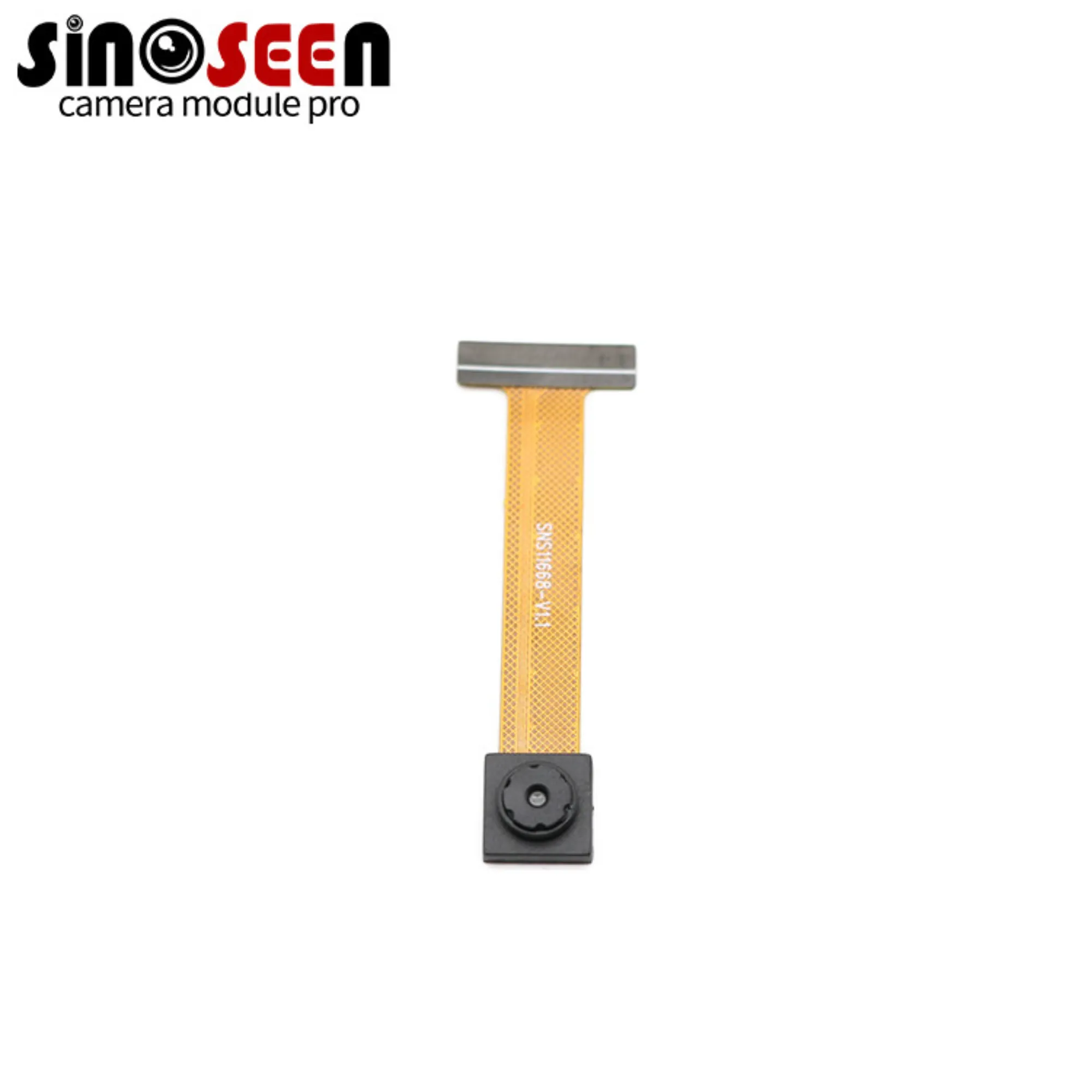

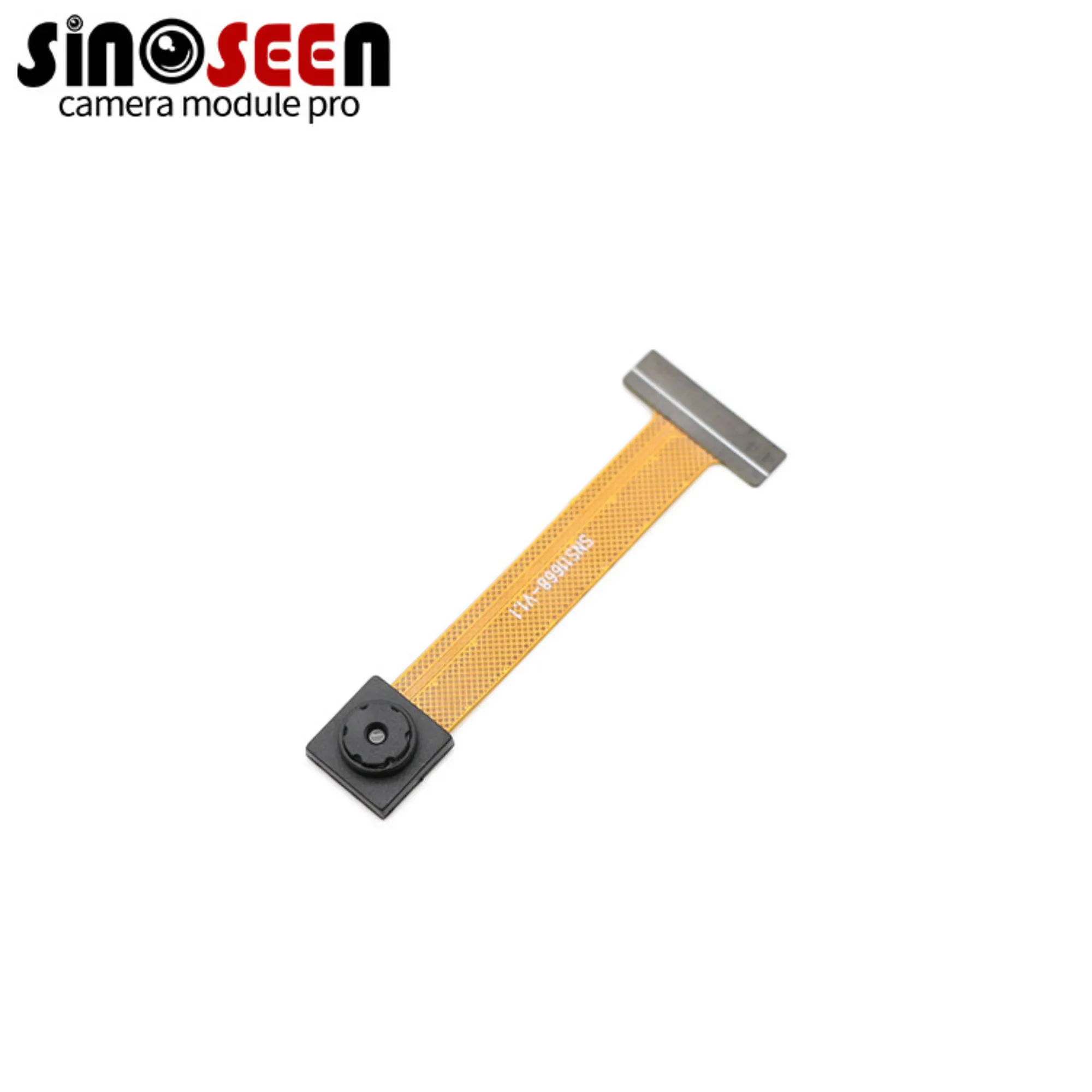

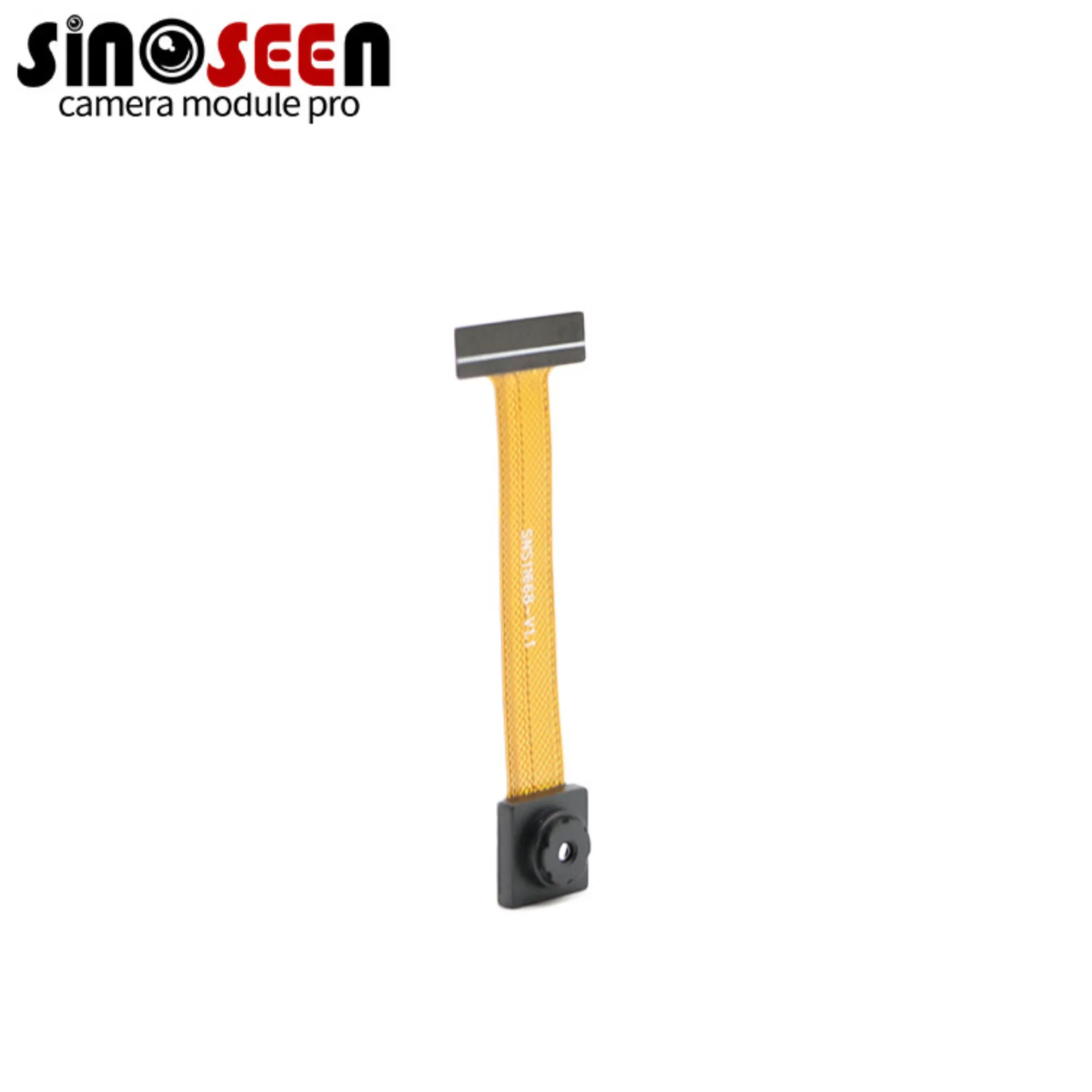

0.3MP Compact DVP OV7740 Sensor Camera Module For Mobile Phones

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS11668-V1.1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
  • Parameter
  • Related products
  • Inquiry
  • Detail Information
Type: DVP Camera Module Sensor: 1/5" Omnivision OV7740
Resolution: 0.3MP 640x480 Dimensions: Customizable
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: DVP Feature: Non Distortion
High Light:

Compact DVP Camera Module

,

OV7740 Sensor DVP Camera Module

,

0.3MP Compact Camera Module

Product Description

Introducing the 0.3MP DVP Camera Module, featuring a compact CMOS sensor ideal for mobile phone applications. With its low power consumption, fast readout speed, and excellent image quality, this module is a popular choice for modern mobile devices. Its slim design ensures seamless integration into the slim profiles of mobile phones, maintaining their sleek appearance.

Product Features

  • VGA Color Imaging
    Captures 640 × 480 images for applications that do not require megapixel resolution.

  • DVP Parallel Interface
    Provides an image data connection for compatible embedded processors.

  • Low-Light Sensor Technology
    OMNIVISION’s OmniPixel3-HS architecture supports sensitive image capture when available light is limited.

  • Integrated Image Processing
    Programmable controls include exposure, white balance, gamma and noise reduction.

  • Fixed-Focus Optics
    Supports a consistent optical setup for a defined working range.

  • Customizable Mechanical Design
    Module dimensions can be discussed to match the installation space.

Specification

Module No

SNS11668-V1.1

Pixel Size

4.2μm x 4.2μm

Effective Pixels

640×480

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

640×480 @ 60fps

320×240@ 120fps

Image Sensor

1/5"

Sensor Type

Omnivision OV7740

Lens view

FOV60°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

0~60℃

Storage temperature

-20~70℃

Dimensions

Customizable

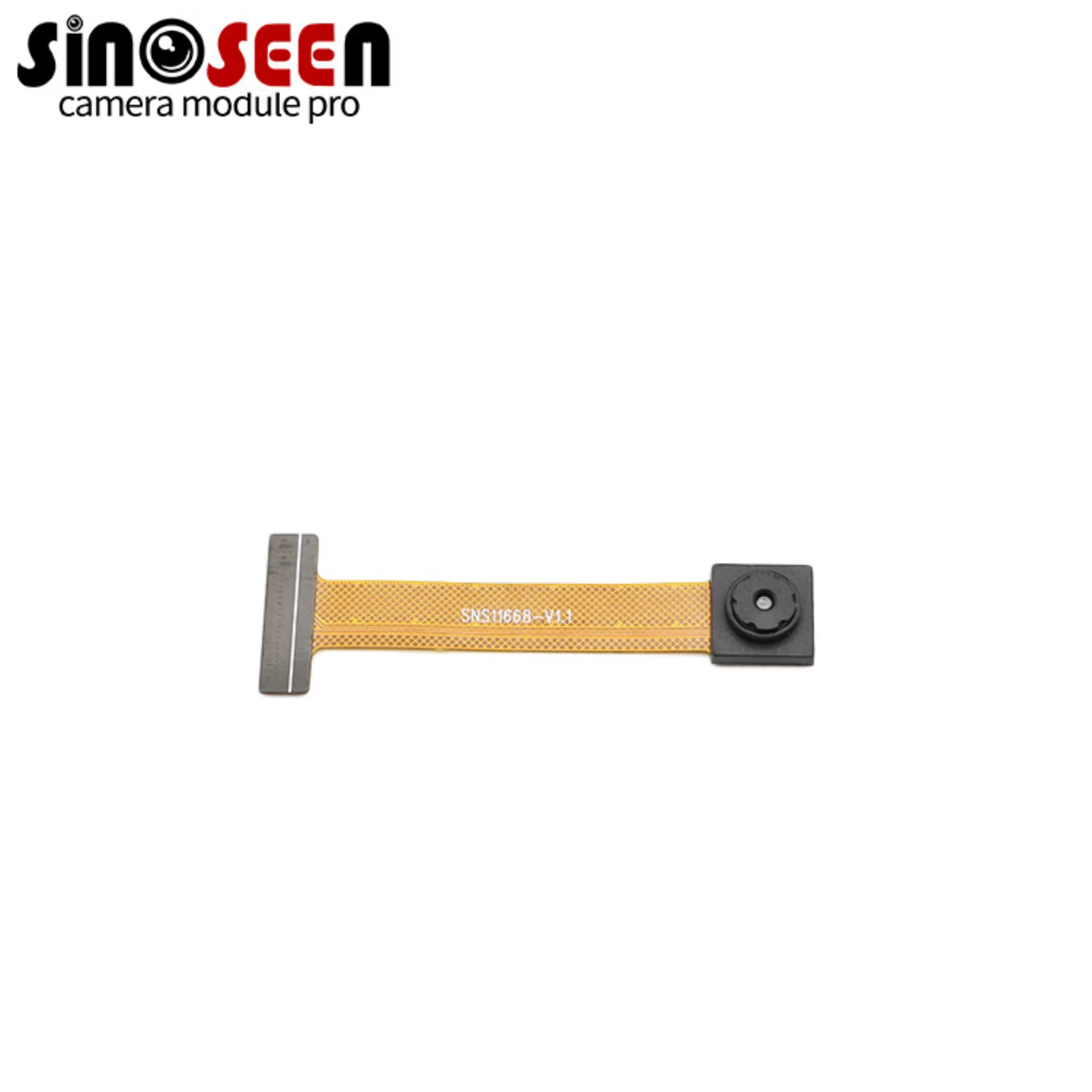

OV7740-Sensor-Compact-DVP-CameraCompact-DVP-Camera-Module-For-Mobile-Phones 1

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process


Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Project Requirement Areas for Engineering Review Information to Provide
The camera does not fit the enclosure Camera-head placement, FPC outline, and routing Mechanical drawings and available space
cene coverage or working distance is unsuitable Lens selection, field of view, and focus setting Target dimensions and capture distance
The host connection differs from the standard design Connector, pin assignment, and interface configuration Host specifications and connection requirements
Moving targets require sharper capture Exposure, lighting, and supported frame-rate modes arget speed, sample images, and lighting conditions
he project requires infrared imaging Filter and lens suitability Illumination wavelength and imaging requirements

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

About Sinoseen


Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property


Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Frequently Asked Questions


Q1. Is this a USB or MIPI camera?
This configuration uses a DVP parallel interface. It requires a compatible host camera interface and supporting software.

Q2. Does it support autofocus?
The listed configuration is fixed focus. Select the lens and focus setting according to the nearest and farthest subjects your device needs to capture.

Q3. What frame rate can it achieve?
Request the verified resolution and frame-rate table for the supplied module. Confirm the sensor version, clock settings, output format and host capture capability.

Q4. Can it operate in complete darkness?
Low-light sensitivity does not replace illumination. Capture in darkness requires an appropriate lighting arrangement and optical configuration.

Q5. Can it be used for barcode scanning?
It can be evaluated as the image capture component. Decoding requires host software, and performance depends on barcode size, working distance, focus and illumination.

Shenzhen Sinoseen Technology Co., LTD

China top 10 camera module manufacturer

If you are struggling to find the right camera module solution, please contact us,

we will customize all kinds of USB/MIPI/DVP interface camera modules according to your needs,

and have a dedicated team to provide you with the most suitable solution.

Camera module customization suggestion

According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.

examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
