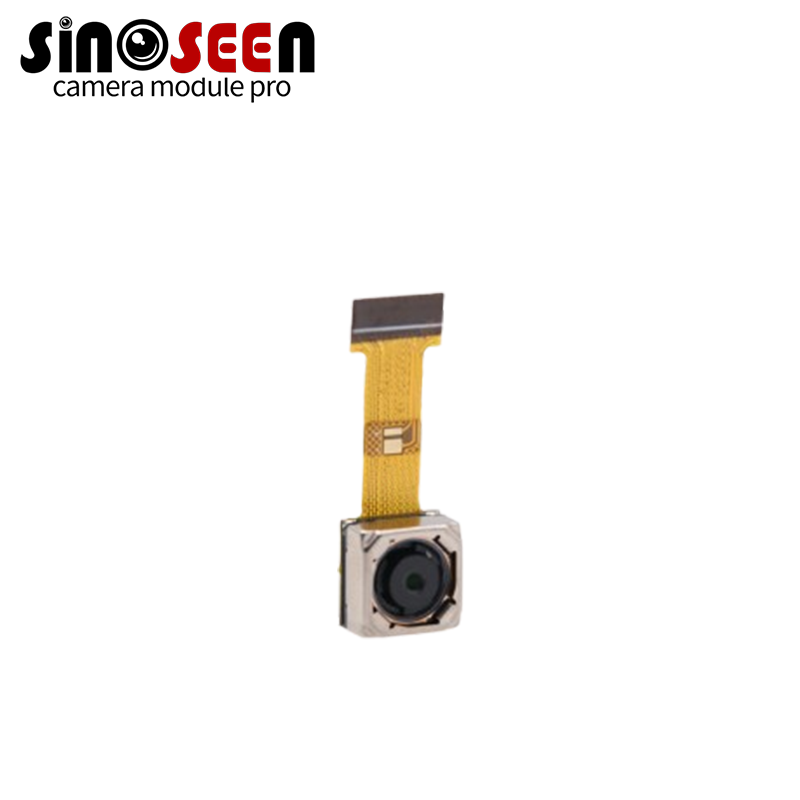

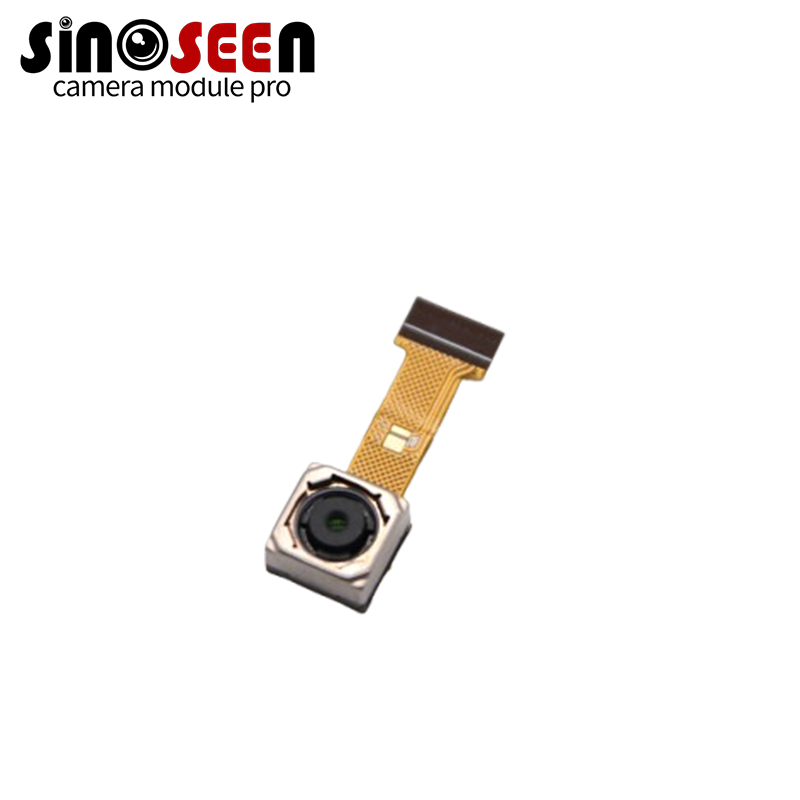

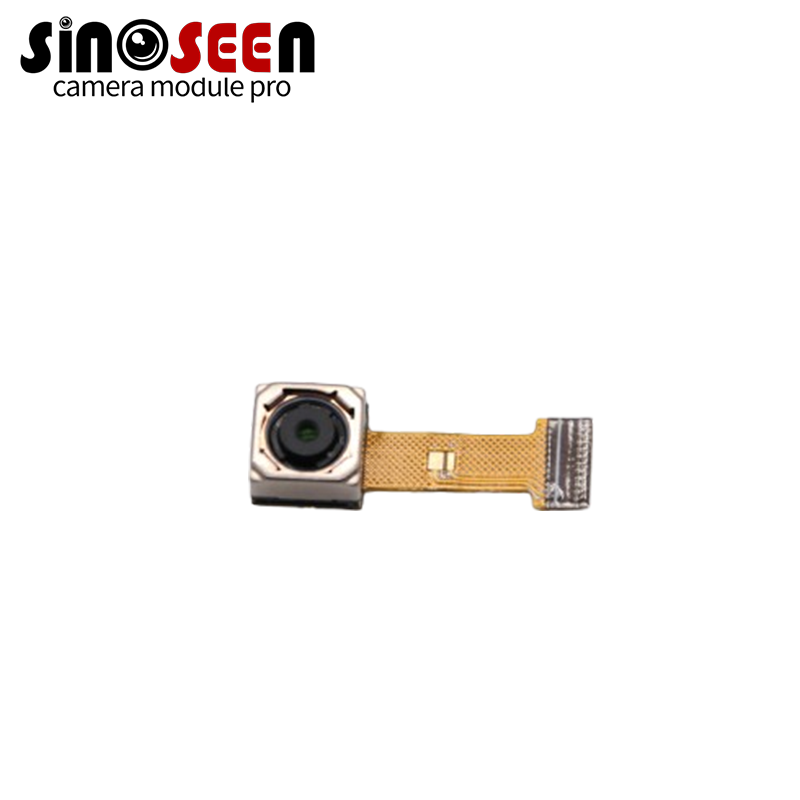

OV5670 CMOS Sensor 5MP 1080P High Performance HDR Rolling Shutter for Security

OV5670 CMOS Sensor 5MP 1080P High Performance HDR Rolling Shutter for Security

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sinoseen
Certification:	RoHS
Model Number:	XLS52032-V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	negotiable
Packaging Details:	Tray+Anti-static bag in carton box
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	500000 pieces/month

Inquiry

Parameter
Related products
Inquiry

Product Description

The OV5670 CMOS sensor provides 5MP resolution (2592x1944) with rolling shutter for full HD video capture. It supports HDR processing, ensuring clear images under varying light conditions.

It outputs 10-bit RGB RAW data through a 2-lane MIPI interface, allowing easy integration with cameras and embedded systems.

The sensor features proprietary noise reduction and defective pixel correction, producing clean, stable, and vivid color images.

It supports quad HD 2560x1440 at 30fps, 1080P at 60fps, and VGA at 120fps, covering a wide range of video needs.

Highlights

5MP full HD video capture
HDR and rolling shutter support
2-lane MIPI interface for easy integration
High frame rates up to 1080P 60fps and VGA 120fps

CMOS Image Sensor Specifications

Item	Specification
Active Array Size	2592 × 1944
Pixel Size	1.12 µm × 1.12 µm
Image Area	2945.7 µm × 2214 µm
Lens Size	1/5”
Lens Chief Ray Angle (CRA)	31° non-linear (see figure 9-2)
Input Clock Frequency	6 ~ 27 MHz
Output Interface	2-lane MIPI serial output
Output Formats	10-bit RGB RAW
Maximum Frame Rate	- 5MP (2592 × 1944) → 30 FPS - Quad HD (2560 × 1440) → 30 FPS - 1080p (1920 × 1080) → 60 FPS - 720p (1280 × 720) → 60 FPS - VGA (640 × 480) → 120 FPS
Power Supply	- Analog: 2.6 ~ 3.0V (2.8V nominal) - Core: 1.14 ~ 1.26V (1.2V nominal) - I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal)
Power Requirements	Active: TBD Standby: TBD XSHUTDOWN: TBD
Sensitivity	TBD
Maximum S/N Ratio	TBD
Dynamic Range	TBD
Dark Current	TBD
Operating Temperature	-30°C ~ +85°C junction temperature
Stable Image Temperature	0°C ~ +60°C junction temperature
Package Dimensions	4080 µm × 3430.2
