Product Description

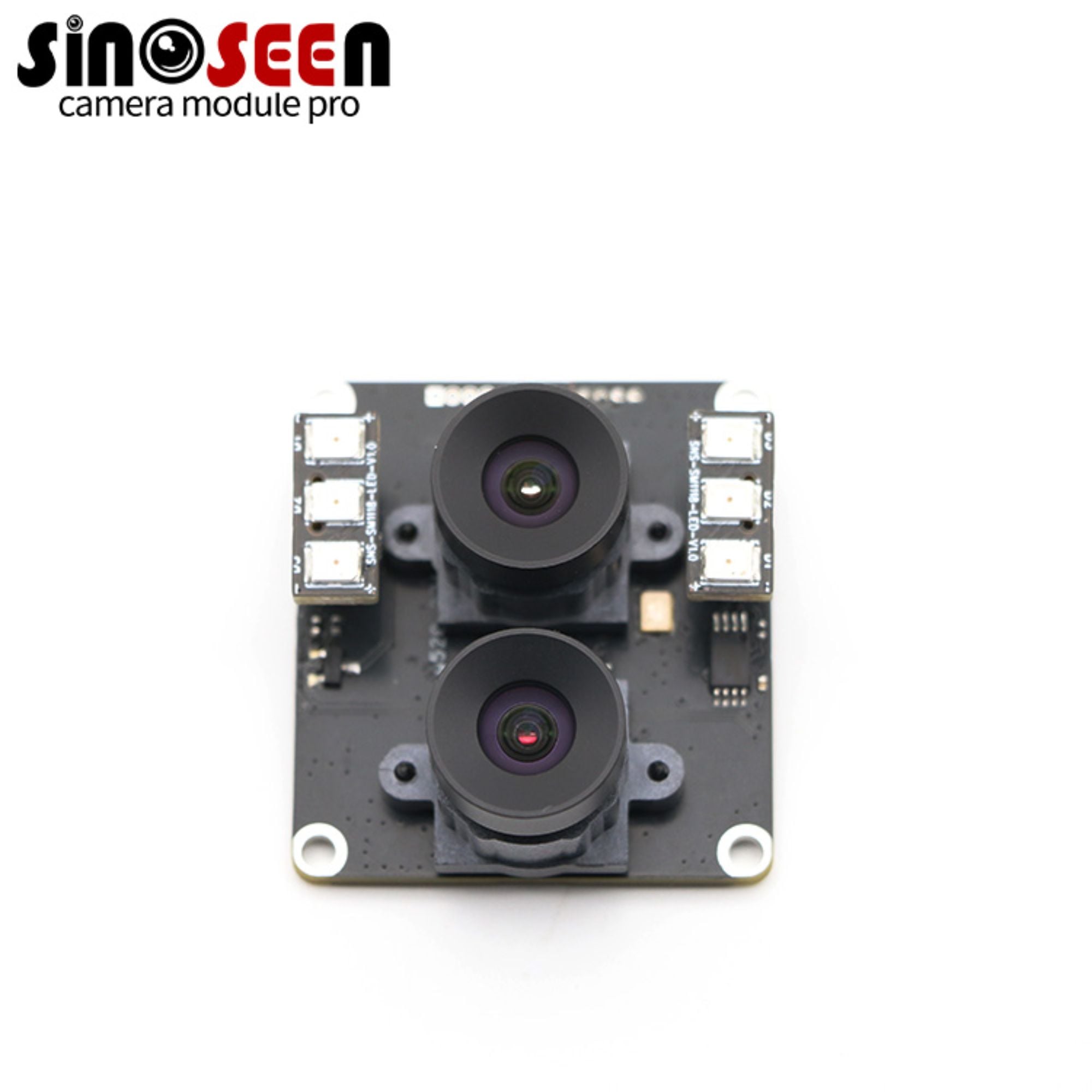

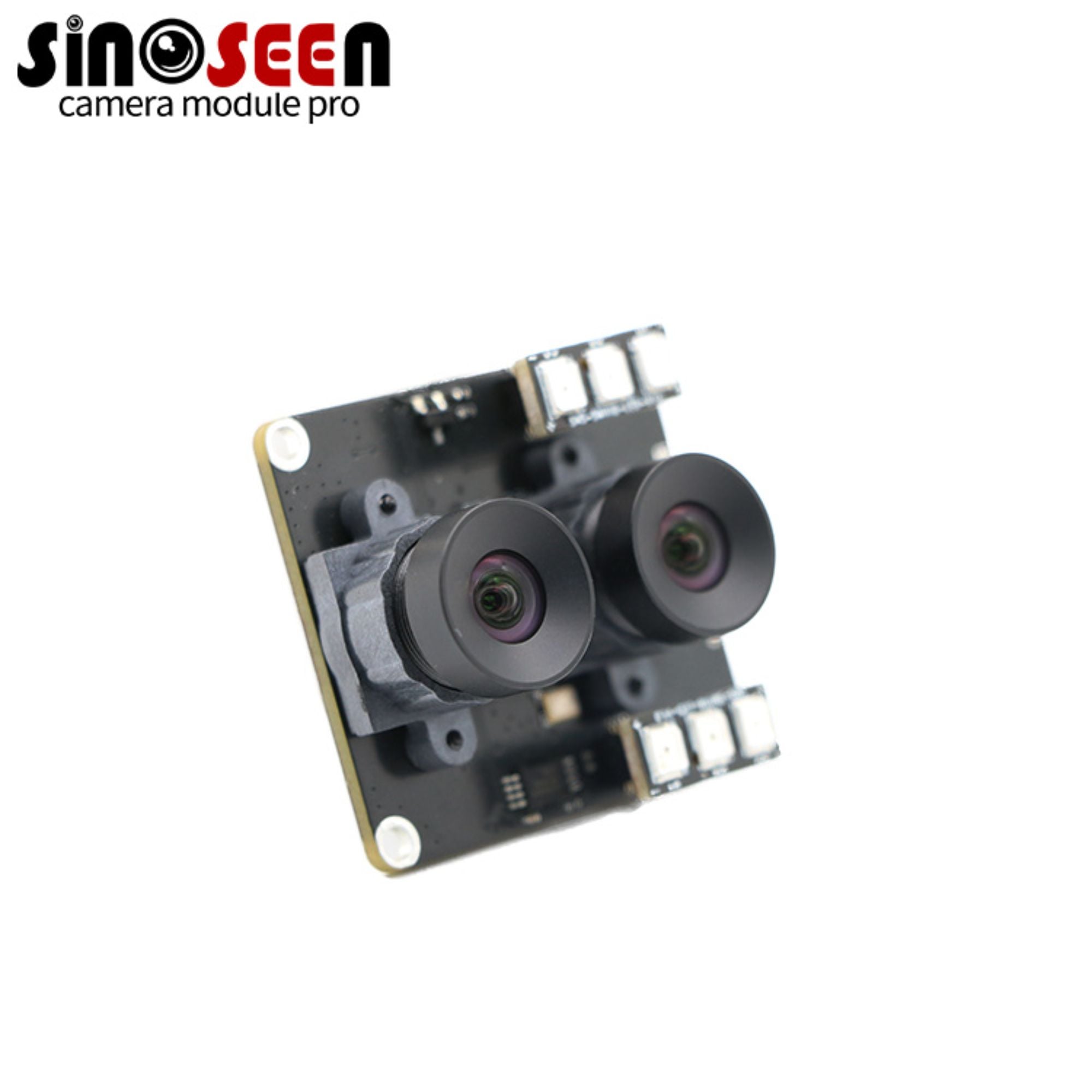

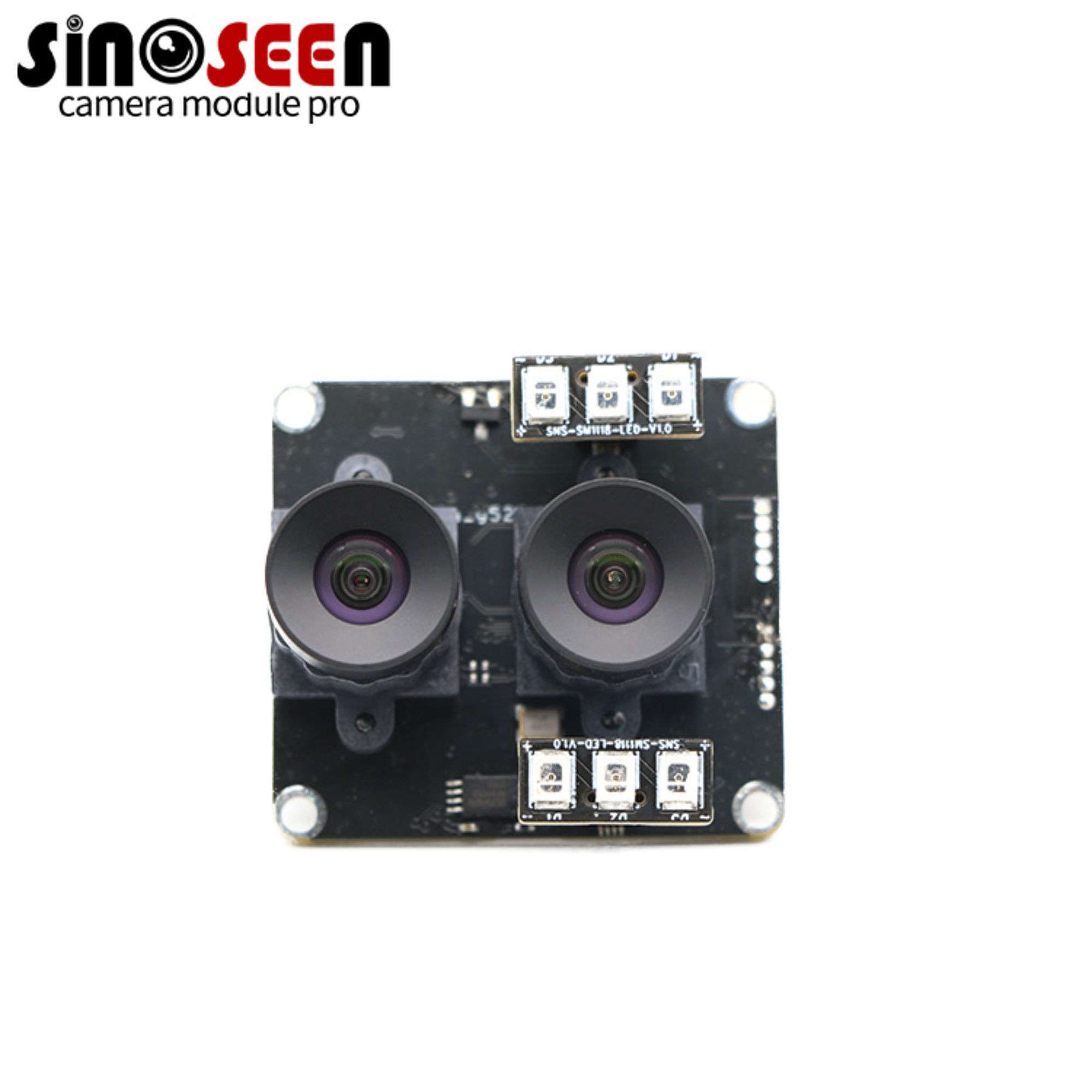

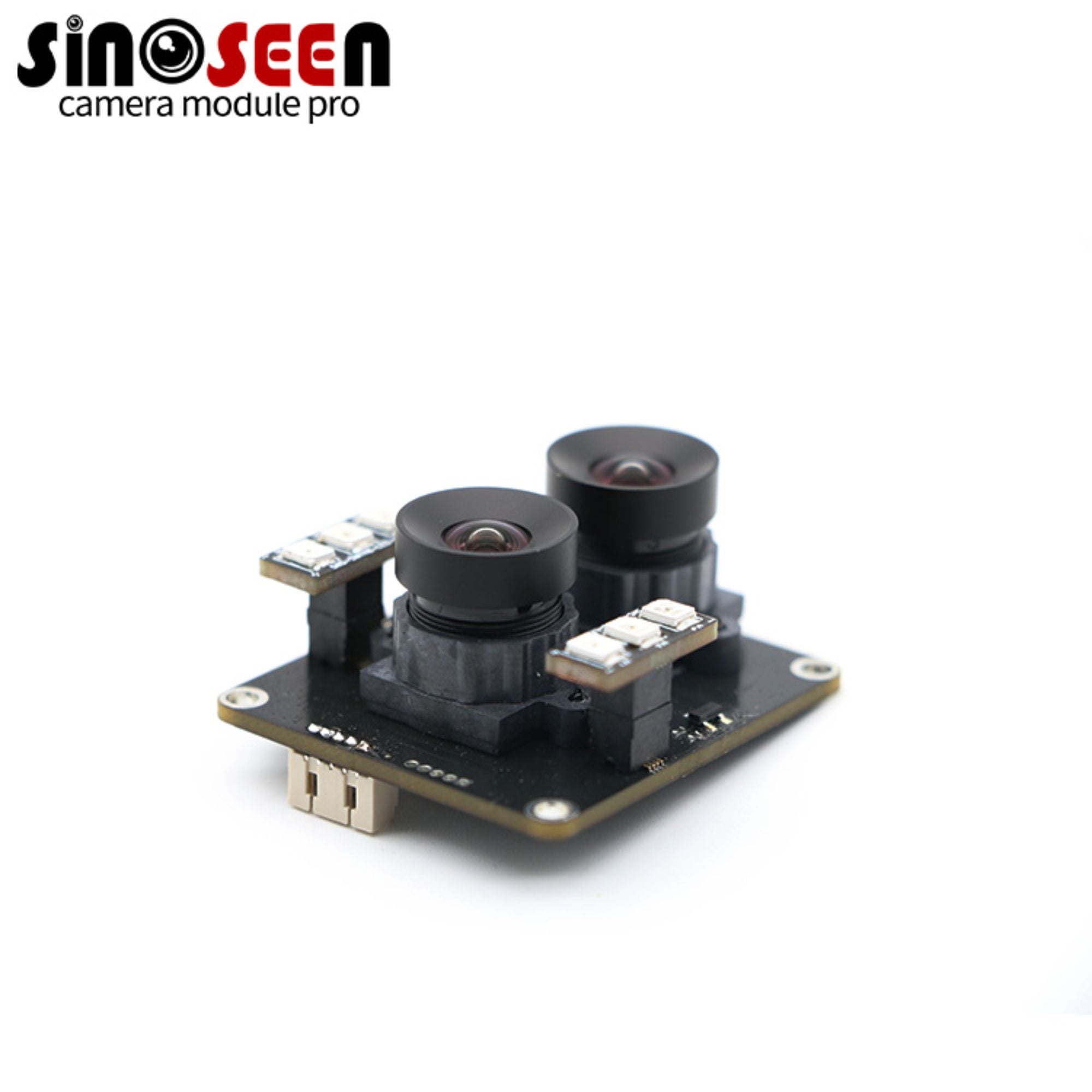

The camera module has a dual-lens design with two separate lenses, each having its own sensor. This design enables capturing images simultaneously or independently, providing flexibility to capture different perspectives or apply different effects. Additionally, the camera module includes a fill light that enhances image quality in low-light environments by providing additional illumination. This ensures that the subject is well-lit, reducing shadows and increasing visibility. The USB interface of this camera module allows for easy connection to host devices, making it

particularly useful for applications such as video conferencing, live streaming, or low-light photography. It can be easily integrated into various devices, including computers, laptops, tablets, or embedded systems, thanks to its widely compatible connection method.

The dual lenses, fill light, and USB port combine to enhance functionality and flexibility for capturing images and video. This results in higher image quality even in challenging lighting conditions and seamless integration with a variety of devices.

Product Features

Dual-Lens Configuration

A dual-lens arrangement provides a hardware basis for projects requiring two optical views. Confirm how each view is delivered to the host before selecting the software architecture.

Full HD Image Capture

The specification lists a 1920 × 1080 image size. Test the selected video mode with your host application to verify image detail and sustained capture performance.

Integrated Dual Digital Microphones

The supplied configuration includes dual digital microphones with noise-reduction functionality. Evaluate voice pickup at the intended speaking distance and ambient noise level.

MJPEG and YUY2 Video Output

Select the output format around your host software and bandwidth requirements. Recording to files such as AVI or MP4 depends on the capture application.

Defined Optical Coverage

The listed lens provides an 89° ± 3° diagonal field of view and a focus distance from 60 cm to infinity. Use these values as a starting point when planning the installation position.

Specification

Application Areas

Face Recognition: Face capture for access control.
QR Code Payment: Code imaging for decoding.
VR Devices: Visual input for motion tracking.
High-Speed Tracking: Moving-object image capture.
Terminal Scanning: Document and barcode imaging.
Robot Vision: Images for positioning and guidance.
Security & Smart Home: Indoor and outdoor monitoring.
AI Training Data Collection: Image capture for AI datasets.
Medical & Life Science Imaging: Image capture for microscopy and research.

OEM/ODM Customization & Development Process

Match the Camera to Your Integration Requirements

A suitable camera configuration must fit both the imaging task and the device structure. Sinoseen provides OEM/ODM camera module services and can assess changes to the optical setup, flexible-circuit layout, connection arrangement, and supported operating configuration.

Customization feasibility, development scope, cost, and lead time are confirmed after engineering review.

Customization Process

Step 1 — Share Your Requirements

Provide the application, host platform, required resolution and frame rate, working distance, installation space, and estimated quantity.

Step 2 — Review the Configuration

Assess the sensor operating mode, interface, lens, and mechanical arrangement. Identify any changes required for the target device.

Step 3 — Confirm Drawings and Evaluation Criteria

Agree on the configuration, connection details, mechanical revision, and sample acceptance requirements before prototype production.

Step 4 — Evaluate Samples

Test image quality, sustained frame rate, exposure behavior, host integration, and mechanical fit in the actual operating environment.

Step 5 — Approve the Production Configuration

Confirm the accepted sample, drawings, optical components, and operating configuration before proceeding with volume production.

Send Your Drawings and Imaging Requirements

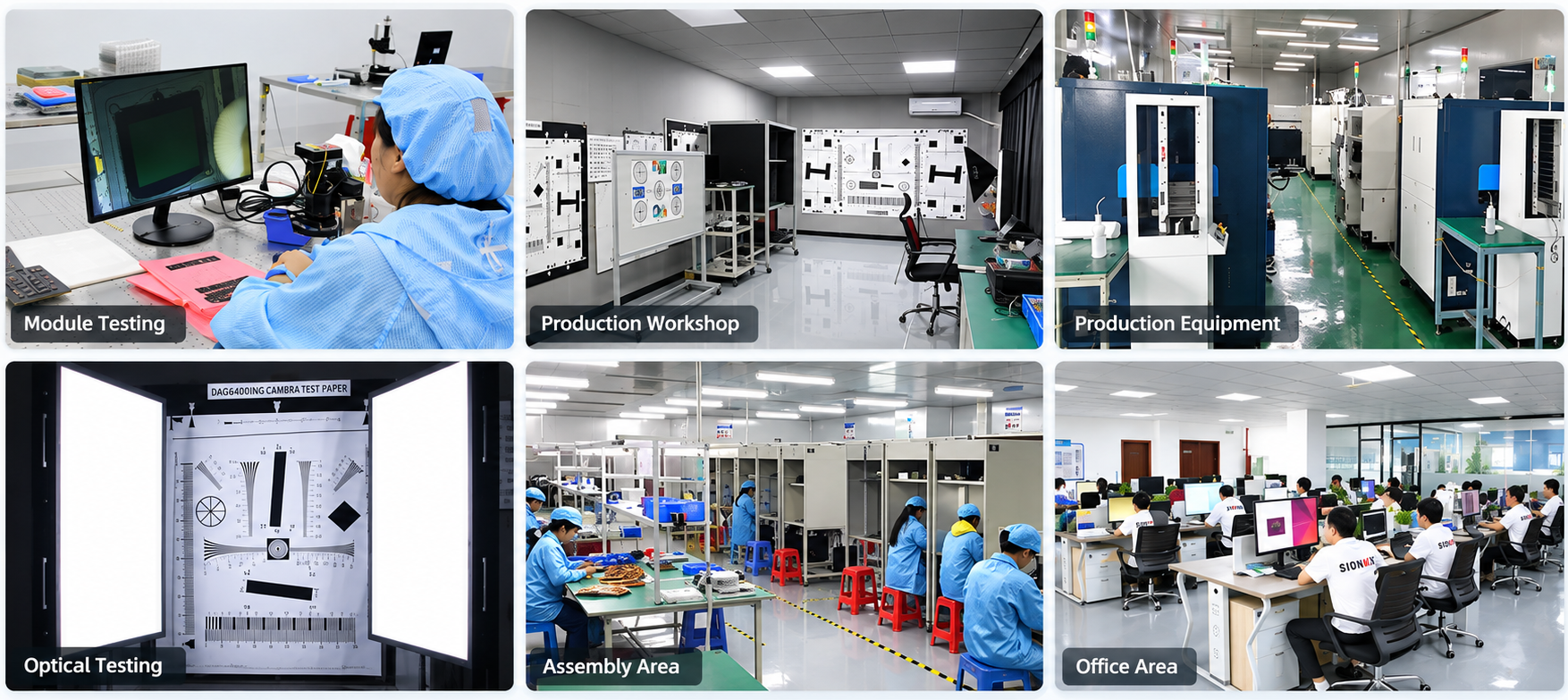

About Sinoseen

Shenzhen Sinoseen Technology Co., Ltd. was established in June 2016 and specializes in CMOS camera module design, development, manufacturing, and OEM/ODM services.

Its product portfolio includes USB, MIPI, and DVP camera modules, with services extending from development through manufacturing and after-sales support.

For embedded vision projects, Sinoseen works with customers to assess the imaging task alongside mechanical and electrical integration requirements. This helps define a camera configuration that can be evaluated in the intended device before production approval.

Certifications & Intellectual Property

Sinoseen’s documentation includes quality management records, product compliance documents, software copyrights, and utility model patents. For your camera module project, please request the current documents applicable to the selected model and configuration, including relevant CE, FCC, or RoHS documentation.

Frequently Asked Questions

Q1: Do two lenses mean the module provides depth data?

No. Depth measurement requires a suitable optical arrangement, calibration, synchronized capture where required, and processing software. These capabilities are not established by the supplied specification.

Q2: Can both cameras deliver 1080P video simultaneously?

The documentation lists 1080P imaging but does not provide a simultaneous dual-channel mode table. Confirm each channel’s resolution, frame rate, and output arrangement before integration.

Q3: Does it support 30fps or 60fps?

The supplied specification marks the maximum frame rate as TBD. Request the verified mode list for MJPEG and YUY2.

Q4: Does the listed focus distance guarantee long-range identification?

No. Focus distance describes the optical focus range. The distance at which details can be identified also depends on target size, lighting, resolution, and the application’s requirements.
